STAINLESS STEEL VAT
VT101004

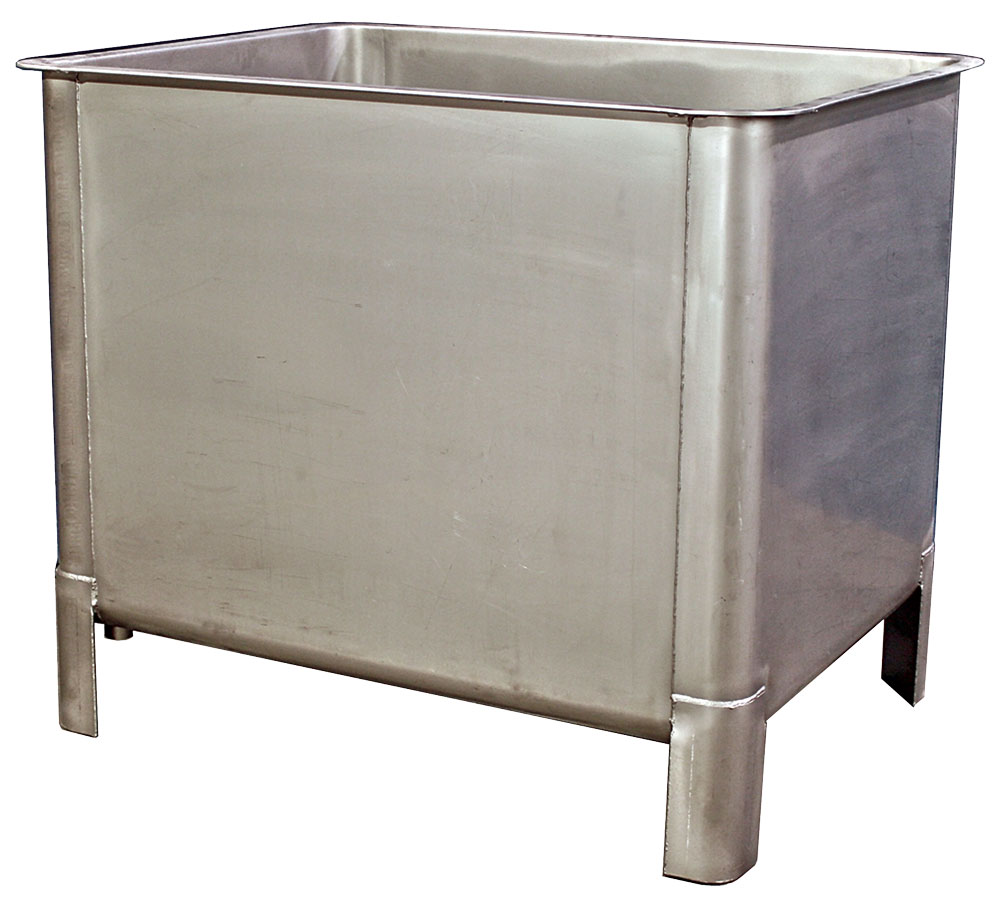

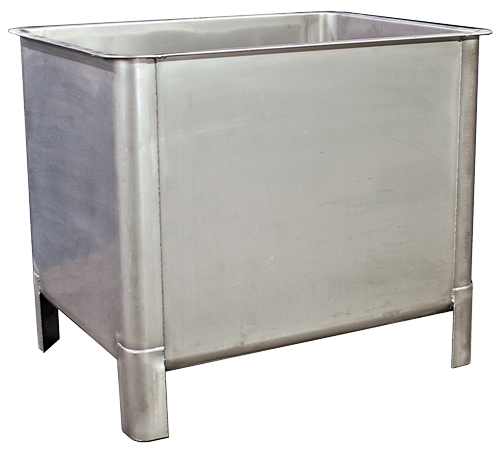

2000 Lb Capacity Stainless Steel Vat




This Vat is fabricated with large radius corners for easy clean-out. Enclosed and full welded legs are made of 11 gauge material. Standard leg length allows 5" of clearance, which makes it possible to transport the vat with a pallet jack. Custom leg heights are available upon request. The top rim is hemmed and flanged and has corners made of 1/4" bar. Exterior and interior welds are bead blasted. It has a load capacity of 2000-lbs or volume capacity of 35.6 cu ft. or 266 gallons.

Standard Features:
12 Gauge Body
11 Gauge Enclosed Legs
5" - 7" Floor Clearance


1-1/2" hemmed Rim
Reinforced Corners
Inside Dimensions: 36" W x 47.5" L x 36" Depth

Options:
Custom sizes
1-1/2" Drain & Rubber Plug
1-1/2" Drain & Threaded Cap
Material Thickness


10 Gauge Legs with 1/4" Skid Plate
Stacking Plates
Welded ID Numbers on Vats
Lids
Overall dimensions
w x l x H (w/5" Legs)
Features load capacity material approximate shpg. wt. model no.
39.5" x 51" x 41" With Drain & plug 2000 lbs Stainless Steel 277 lbs vt101002
39.5" x 51" x 41" Without Drain & plug 2000 lbs Stainless Steel 275 Lbs VT101004
Printable PDF literature on the Vats - Click here.     2000 Lb Vat Literature Distributed     PDF Literature on Lander, Spreader & Tree Link to Adobe Reader
